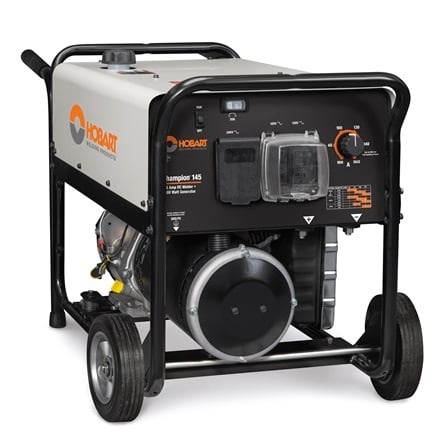

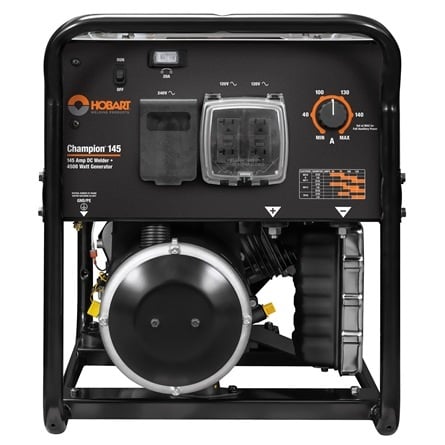

Hobart Champion® 145 Welder/Generator

Features and BenefitsDocumentsSpecificationsWhat's IncludedFeatures and Benefits Generator power 4,500 watts surge power and 4,000 watts continuous power. Large muffler Quiet operation. Briggs & Stratton Intek(TM) engine No need for you to take breaks to fill up the tank. Fuel-efficient engine with 6.25-gallon fuel tank for longer run times. Versatile receptacle package With four 20A, 120 VAC GFCI receptacles and one 240 VAC (6-50R) receptacle with covers, allows you to obtain power for with 120 or 240 V tools or appliances. 145 amp DC welder Allows you to weld DC stick electrodes up to 5/32 in. diameter. Lightweight and rugged Portable at 222 lb. (101 kg) with running gear and rollbar frame built for your added protection. Documents Spec Sheet (ENG) Specifications PROCESSES Stick (SMAW) GENERAL SPECIFICATIONS Title Champion® 145 Welder/Generator Fuel Tank Size 6.25 gal. Fuel Type Gasoline Weldable Metals Steel Stainless Steel Specialty Metals Rated Output 130 A @ 30% Duty Cycle Single Phase Generator Continuous Power 4000 W Single Phase Generator Peak Power 4500 W Current Type DC Amperage Range 40 – 145 Weld Output CC Net Width 20.625 in Net Height 24.75 in Net Length 31.25 in Net Weight 222 lbs Warranty 3 Years CERTIFICATIONS CSA Certificate of Compliance 70100562 What's Included Running Gear SKU: 500563 Categories: Brands, Engine Driven Welders, Hobart Welding Products Tag: hobart Brand: Hobart
