12/24V 10A Lithium Solar Charge Controller with 2 USB Ports, D2D(SPSCC-100Li)

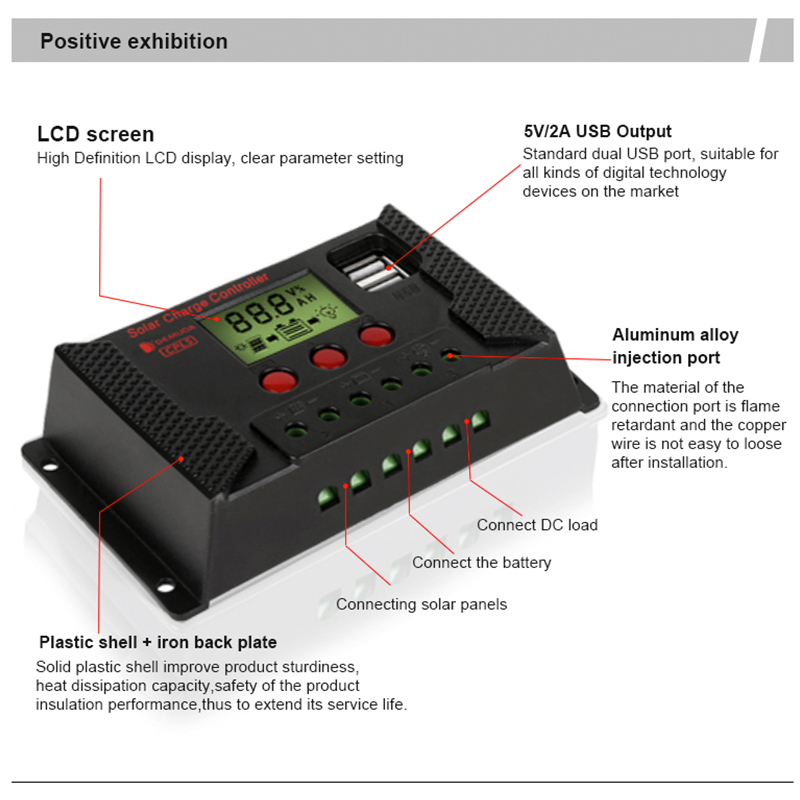

Solar Charge Controller supports battery charging when connected between the battery and the solar panel. On the LCD display, you can see the charging status and switch modes conveniently. Battery Voltage-12V/24V. Compatible Batteries: Lead-acid, Lithium Iron Phosphate, Lithium Ternary. The device should be connected to the panel and battery both for the device to be working. Battery Size: 12V (Lead Acid), 11.1V/3S (Li-ion), 12.8V/4S (LiFePO4) / 24V (Lead Acid), 21.6V/6S (Li-ion), 25.2V/8S (LiFePO4) Protections: Overload protection, short circuit protection, open-circuit protection, and reverse protection, the device will protect your battery and will increase the battery life. Reverse Polarity for all terminals, Short Circuit for battery & load terminals, Overcurrent for load terminal. Working Modes: 24 Hours ON, D2D(0H), 1-23 Hours On, Manual. Solar Panel: For 12V System Max Panel Wattage: 200W, Max Panel Input Voltage(OCV): 25V / For 24V System Max Panel Wattage: 400W, Max Panel Input Voltage(OCV): 50V. Max Supported DC Load Up to 120W for 12V / 240W for 24V. Solar charge controller work with 12V and 24V panel, you can set float voltage (Float voltage is maxed battery charge voltage), discharge reconnects (Load on after this voltage), discharge stop (Load OFF on this voltage), and work mode (When you set hours setting then load ON after sunset automatic). Note:- When connecting the controller to the battery make sure that the battery should be at least 10.7V charged. For Suitable panel type and Suitable configuration please refer to photos.
