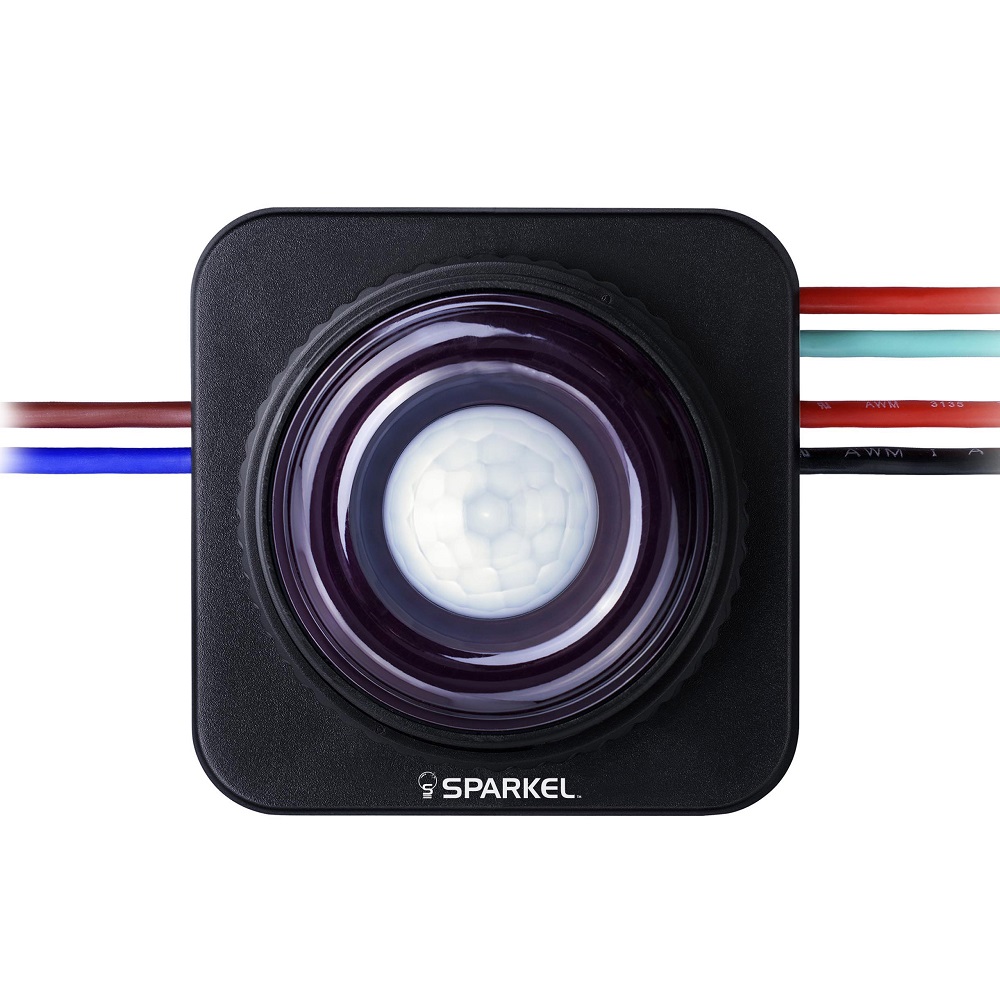

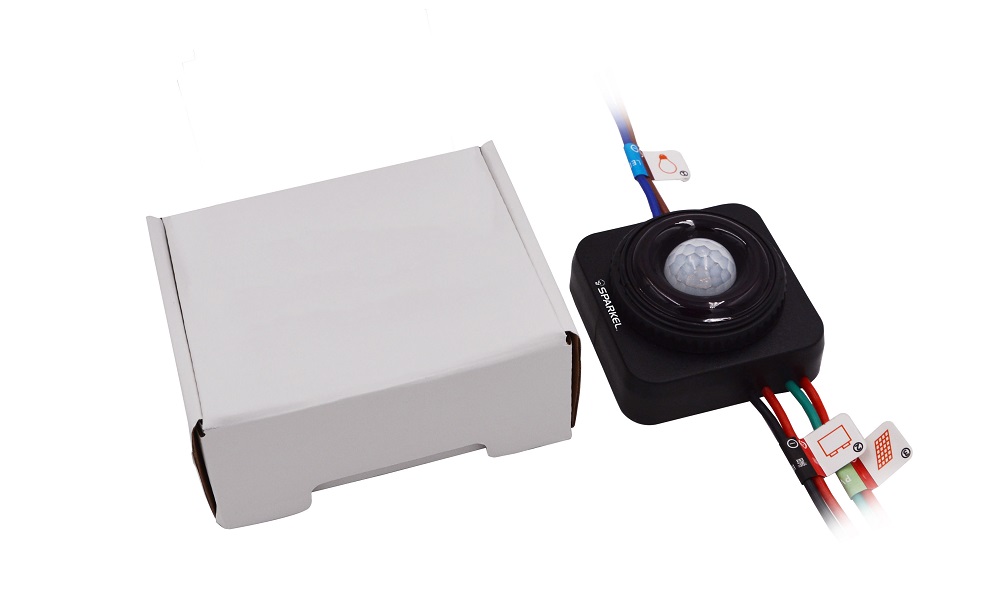

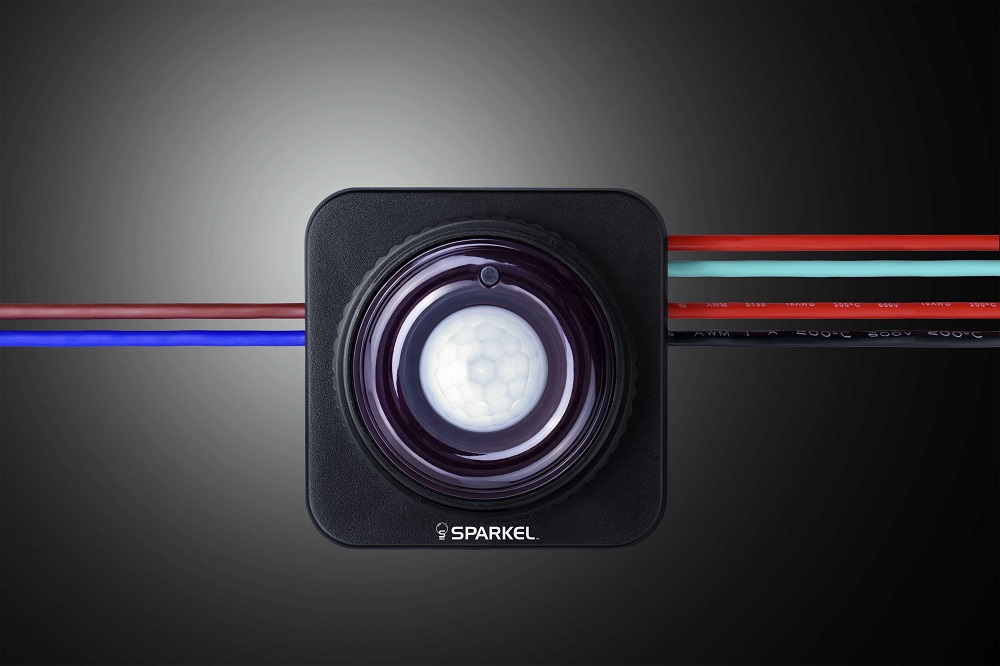

12V 10A 25V PV 30W 17V to 55V Output Dimming Streetlight Controller(SPSTC-1030LiR)

PWM 12V 10A Smart Solar STREETLIGHT Constant Current Boost Charge Controller For Integrated, Semi Integrated & Non Integrated PC lens Streetlights (SPSTC-1030LiR)   Panel Specifications: Max Input Voltage(OCV) ? 25V, Max Input PV Total (Watts) ? 180W (12V/36Cell Panels) Battery Voltage-12V, Compatible Batteries ? Li-Ion: 11.1V(3S) to 14.8V (4S) / LiFePO4: 12.8V (4S). Load Specifications: LED PCB Design or Rated Voltage: Battery Voltage 2 to 55V(kindly specify how it?s specified in spec sheet). Max load Supported: Up to 30Watts Protections: Reverse Polarity For all terminals, Short Circuit for battery & load terminals, Overcurrent for load terminals. Size & weight:L6.8 x W6.8 x H3.9CM, 150g Working Mode: Dusk to Dawn, 24 Hours, TOT mode (can set the load on time before morning coming), Five stage night mode and Programmable Using Remote Unit (to be purchased separately, SPSTC-1030LiR ). Refer all photos & user manual before purchasing product.
