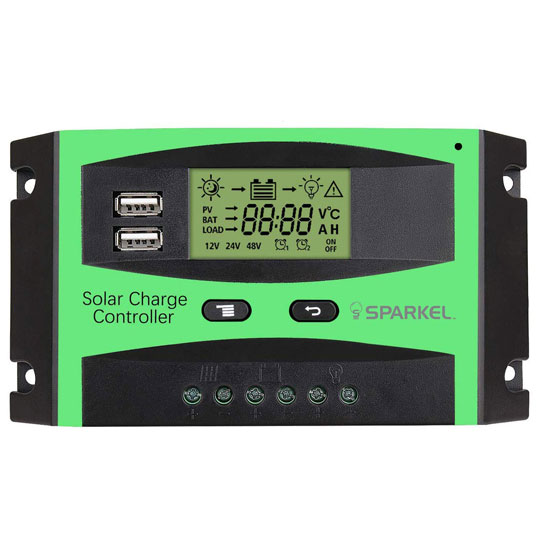

12/24V 30A Solar Charge Controller with 2 USB Ports, D2D(SPSCC-230)

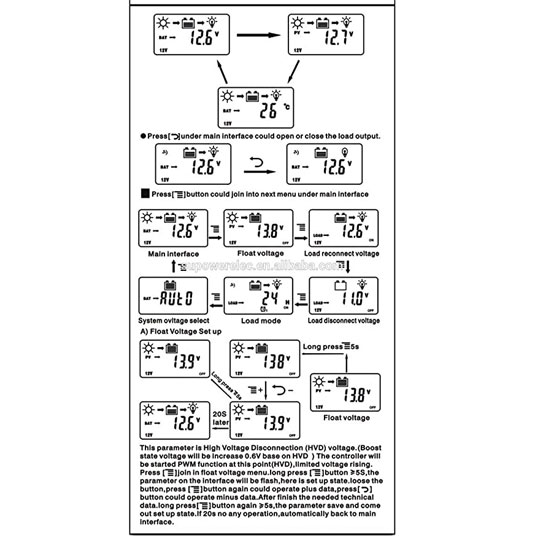

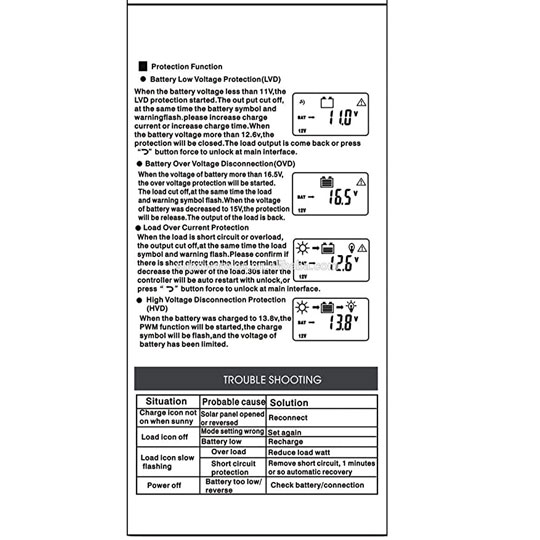

Solar Charge Controller supports battery charging when connected between the battery and the solar panel. On the LCD display, you can see the charging status and switch modes conveniently. Battery Voltage-12V/24V. Compatible battery type 12V/24V Lead Acid/Tubular/SMF/VRLA battery or 4S(12.8V)/8S(25.6V) LFP battery and not compatible for Li-ion(NMC) battery. Protections: Overload protection, short circuit protection, open-circuit protection, and reverse protection, the device will protect your battery and will increase the battery life. Reverse Polarity for all terminals, Short Circuit for battery & load terminals, Overcurrent for load terminal. Working Modes: 24 Hours ON, D2D(0H), 1-23 Hours On, Manual. Solar Panel: For 12V System Max Panel Wattage: 600W, Max Panel Input Voltage(OCV): 25V / For 24V System Max Panel Wattage: 1200W, Max Panel Input Voltage(OCV): 50V. Max Supported DC Load Up to 360W for 12V / 720W for 24V. Solar charge controller work with 12V and 24V panel, you can set float voltage (Float voltage is maxed battery charge voltage), discharge reconnects (Load on after this voltage), discharge stop (Load OFF on this voltage), and work mode (When you set hours setting then load ON after sunset automatic). Note:- When connecting the controller to the battery make sure that the battery should be at least 10.7V charged. For Suitable panel type and Suitable configuration please refer to photos. Use & give input of 12V/36Cell Panels for 12V Battery, 24V/60cell Panels for 24V Battery, 36V/72Cell Panels for 36V Battery, 24x2V/ 60cell x2 Panels for 48V Battery System Respectively. The controller may get damaged if input voltage guidelines are not followed. For all other combinations of solar panels, kindly choose MPPT solar charge controller over PWM solar charge controller.     Features   Battery Compatibility: Lead Acid(OPEN, AGM, GEL) & Lithium(LFP) compatible with Life PO4 Battery Over Current Protection, Over-Discharge Protection, Short-Circuit Protection, Over Charge Protection, Reverse Protection, Open Circuit Protection. Float Charging voltage adjustment for each battery type, setting of recovery, and cut off voltage Load options: 24 Hours ON(default), Dusk To Dawn, No. Of Hours ON(0-13hrs). Overnight ON & OFF button for the load to turn ON & OFF manually.           SPSCC-100 SPSCC-200 SPSCC-230 SPSCC-3024 SPSCC-3048 SPSCC-5048 Type of Batteries Lead Acid Lead Acid Lead Acid Lead Acid, LFP & Li-ion Lead Acid, LFP & Li-ion Lead Acid, LFP & Li-ion Controller Rating/Battery Voltage 12V/24V 12V/24V 12V/24V 12V/24V/36V/48V 12V/24V 12V/24V/36V/48V Max Charging/Load Current 10A 20A 30A 30A 30A 50A USB Rating 5V 2A 2Ports 5V 2A 2Ports 5V 2.5A 2Ports 2 Ports & 2.5A 2 Ports & 2.5A NA Max Open Circuit Voltage of Solar 25V/50V 25V/50V 25V/50V 25V/50V/75V/100V 25V/50V 25V/50V/75V/100V Max Solar Panel Capacity For 12V Battery Bus 200W 400W 600W 600W 600W 1000W Max Solar Panel Capacity in 24V 400W 800W 1200W 1200W 1200W 2000W Max Solar Panel Capacity in 36V NA NA NA 1800W NA 3000W Max Solar Panel Capacity in 48V NA NA NA 2400W NA 4000W Add On Features Voltage Setting by User for Battery Type Voltage Setting by User for Battery Type Voltage Setting by User for Battery Type, Temperature Compensation Voltage Setting by User for Battery Type, Charge & Discharge Current Setting as per requirement, Temperature Compensation, PV & Load Current Display, Accumulated & Used Energy Display Voltage Setting by User for Battery Type, Charge & Discharge Current Setting as per requirement, Temperature Compensation, PV & Load Current Display, Accumulated & Used Energy Display Voltage Setting by User for Battery Type, Charge & Discharge Current Setting as per requirement, Temperature Compensation, PV & Load Current Display, Accumulated & Used Energy Display
