150W Boost Converter DC-DC 10V-32V to 12V-35V (Step Up Module)

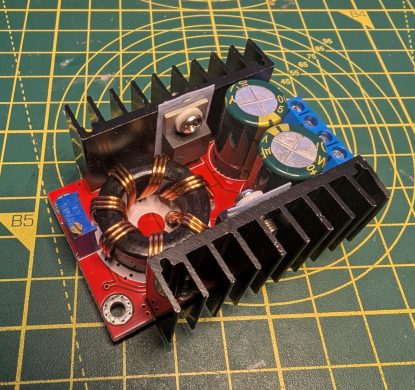

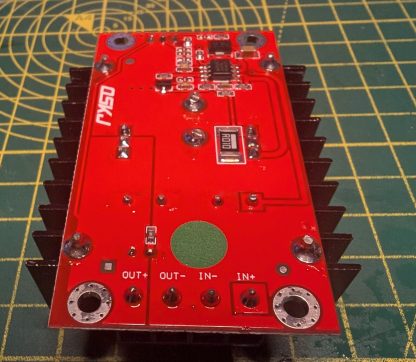

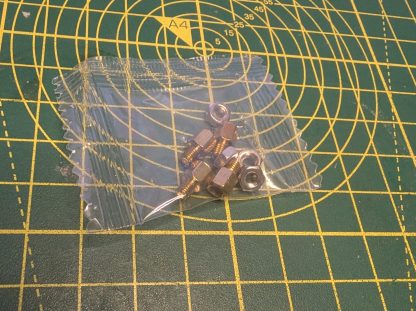

Description WHAT IS IT A basic step-up (boost) converter module that takes a DC input voltage and boosts it to a higher adjustable DC output voltage. Capable of up to 150W with added heat dissipation, or a solid 100W with natural cooling.  Supplied with brass standoffs. NOT FOR MAINS USE WHAT IS IT USED FOR Perfect for running 19V laptops from a 12V battery or vehicle supply . Also useful anywhere you need to step up a battery or DC supply to a higher fixed voltage. FEATURES Adjustable output voltage — set once with the onboard trimmer pot Up to 150W output with enhanced cooling, 100W with natural airflow Good efficiency — 91% measured at 12V/4.1A in, 18V/2.5A out Wide industrial operating temperature range: -40°C to 85°C Low no-load current draw: ~19mA typical Brass standoffs included for easy mounting and to hold circuit off surface. ⚠️ No short circuit protection — fit a fuse on the input ⚠️ No reverse polarity protection — series diode recommended on input HOW DO I SET IT UP? Before connecting your load, use a multimeter across the output terminals. Power the module from your input supply (10–32V DC). Adjust the onboard trimmer pot to set your desired output voltage (12–35V). Power off, connect your load, and power back on. Check voltage out again with a multimeter. If running above 100W, attach a heatsink or add active cooling to the main chip. TECHNICAL SPECIFICATIONS Topology Non-isolated boost (step-up) Input Voltage 10 – 32V DC Output Voltage 12 – 35V DC (adjustable) Output Current 6A max Input Current 10A max Output Power 100W (natural cooling) / 150W (with heatsink/fan) Output Ripple ≤2% (20MHz bandwidth) Voltage Regulation ±0.5% Dynamic Response 5% / 200µs Full Load Temp Rise 45°C Operating Temp -40°C to 85°C Dimensions 65 × 50 × 23mm DELIVERY Dispatched same weekday if ordered before 3pm. Stock held in Surrey. Free 2nd Class Royal Mail. Upgrade to 1st Class available. SUPPORT My support is second to none — check my feedback. I’ll happily help before or after purchase. I love power supplies! Full refund if faulty, or return it working if it doesn’t perform as expected.
