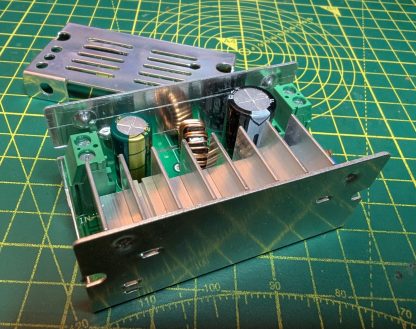

Metal Case Boost 7A 6-55V DC-DC CV

Description WHAT IS IT A step up (boost) converter in a protective metal case. It converts a DC voltage to a higher fixed output DC voltage NOT FOR MAINS USE WHAT IS IT USED FOR Keep a higher output voltage stable when the input varies, like a battery as it discharges. FEATURES Sturdy metal case that also radiates heat Top quality terminals for high power RED Power supply LED Constant Voltage adjustment mini-pot – turn Clockwise Increase Voltage HOW DO I SET IT UP? Take the lid off, and connect the input wires to the screw terminals. Put a voltmeter or one of my meters across the output and turn on the power adjust the CV pot next to the output terminals to set the output voltage to the voltage you require. When happy, power off, connect the load to the output terminals, refit the lid and power on. TECHNICAL SPECIFICATIONS Input Voltage Range 6V – 35V  DC 10A peak Output Voltage range 6V – 55V DC 7A peak Output Current 7A max – though for reliable operation, factor for 4A or less 71mm x 40mm x 31mm Weighs 77g OBSERVATIONS 6Vin 3.05A gives 30Vout 0.5A   (82%), after 10 mins, inductor is 50 degC 12Vin 6.84A gives 18Vout 4A  (88%), after 10 mins,  inductor is 100degC DELIVERY Dispatched Same weekday if ordered before 3pm.  I hold all my stock in Surrey.  Free 2nd Class Royal Mail tracked.  You can level up to 1st Class. SUPPORT My support is second to none.  Check my feedback.  I will gladly help you before or after purchase.  I love power supplies!  I’ll gladly refund you if it’s faulty or you can return it working if it doesn’t perform as you expect.  Be careful with clone UK suppliers – they’re quite often drop-shippers who have no idea what they’re selling – just check their feedback.
