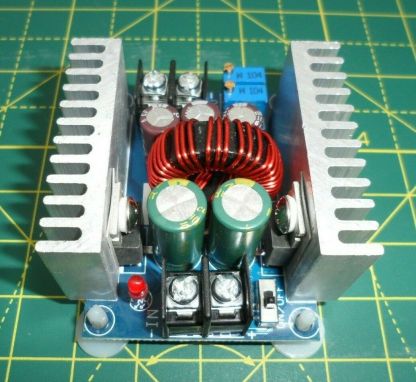

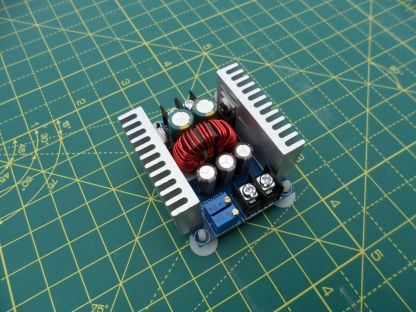

20A Buck Converter Step Down Power Supply Module 1.2v-36V Output

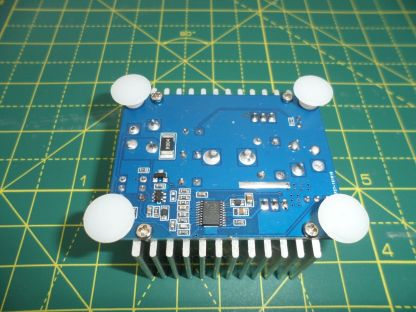

Description Note: Plastic feet are not included WHAT IS IT A step down converter. It will convert a higher DC voltage into a stable lower DC voltage The output voltage will be stable even if the input varies. The output current can be made stable and the voltage varies if required WHAT IS IT USED FOR Taking a high voltage power supply and converting it into a lower voltage Supplying a constant current (CC) to some device that needs it (some batteries need CC to recharge) Keeping an output voltage stable when the input can vary HOW DO I USE IT Easier with an Volt/Amp meter on the output.  See my other listings Connect your input to the IN and – Put a multimeter in voltage mode across OUT and – Turn the CC control many times clockwise till it clicks.  This disables Constant Current. Turn the CV control to get the voltage you require.  Clockwise higher. If the output voltage is the same as the input voltage, turn CV anti-clockwise until it starts to fall. If you need CC, wind it fully anti-clockwise till it clicks, then put a multimeter in Amps mode across the output. Wind the CC up until you reach the current you require. TECHNICAL SPECIFICATION Input Voltage 6V to 40V DC Output Voltage 1.2 to 36V DC Output Current 15A (20A Peak Max – not sustainable) Efficiency 92% 66mm x 50mm x 34mm OBSERVATIONS Really useful power switch not normally found on these small modules Nice beefy power terminals Output 15V 10.0A draws 6.8A In at 24V Temperature after 10 minutes 62degC Controlled by a TI LM25116 A nice beefy complement ready for when you need that extra power. Can supply more than my 185W power load can handle.  Can’t vouch for manufacturer’s 300W. It has short circuit protection but not for long. DELIVERY Dispatched Same weekday if ordered before 3pm.  I hold all my stock in Surrey.  Free 2nd Class Royal Mail tracked.  You can level up to 1st Class. SUPPORT My support is second to none.  Check my feedback.  I will gladly help you before or after purchase.  I love power supplies! I’ll gladly refund you if it’s faulty or you can return it working if it doesn’t perform as you expect. Be careful with clone UK suppliers – they’re quite often drop-shippers who have no idea what they’re selling – just check their feedback.
