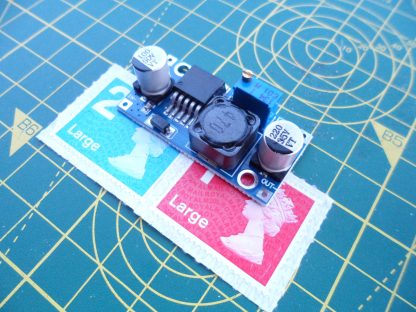

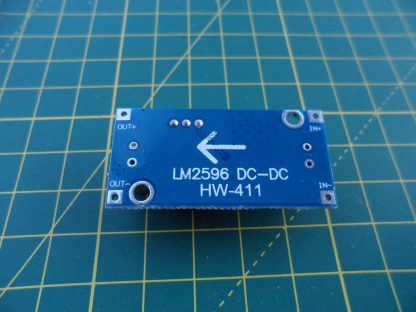

LM2596S DC-DC Adjustable Power Supply Module Step Down Buck Converter 3V-35V

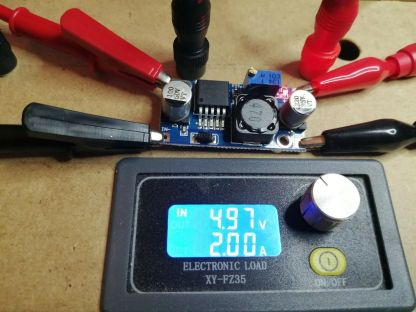

Description WHAT IS IT A step down converter. It will convert a higher DC voltage into a stable lower DC voltage The output voltage will be stable even if the input varies. WHAT IS IT USED FOR Taking a high voltage power supply and converting it into a lower voltage Keeping an output voltage stable when the input can vary HOW DO I USE IT Setup is with an Volt meter on the output. Solder/clamp your input to the IN and – Put a voltage meter across OUT and – Turn the constant voltage setting (CV) pot to get the voltage you require.  Clockwise higher. If the output voltage is the same as the input voltage, turn CV anti-clockwise until it starts to fall. TECHNICAL SPECIFICATION Input Voltage 4V to 35V DC Output Voltage 1.3 to 30V DC Output Current 2A (3A Max) depends on voltages, but lower than max spec because no heatsink Up to 90% efficient – depends on voltages and current Thermal shutdown and current-limit protection See LM2596S datasheet for full specifications 43mm x 22mm x 14mm OBSERVATIONS 12V 0.53A 6.4W in = 5V 1A 5W out 48degC after 10 mins – 78% efficiency 12V 1.13A 13.5W in = 5V 2A 10W out 85degC  after 10 minutes – 74% efficiency DELIVERY Dispatched Same weekday if ordered before 3pm.  I hold all my stock in Surrey. Free 2nd Class Royal Mail 1st Class Royal Mail is an option if you want it next day (Royal Mail willing) SUPPORT My support is second to none.  I will gladly help you before or after purchase.  I love power supplies! I’ll gladly refund you if it’s faulty or you can return it working if it doesn’t perform as you expect. Be careful with clone UK suppliers – they’re quite often drop-shippers who have no idea what they’re selling – just check their feedback.
