Metal Case Buck Boost 5A 1-35V DC-DC CV Only

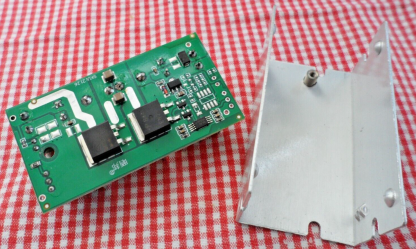

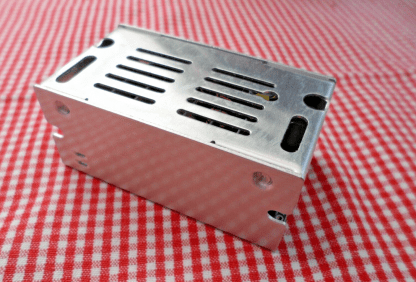

Description WHAT IS IT A step up-down (buck boost) converter in a protective metal case. It converts a DC voltage to a lower or higher fixed output DC voltage NOT FOR MAINS USE WHAT IS IT USED FOR Keep an output voltage stable when the input varies, like a battery as it discharges. FEATURES Sturdy metal case that also radiates heat Top quality terminals for high power RED Power supply LED Short circuit protection through current control Constant Voltage adjustment mini-pot – turn Clockwise Increase Voltage HOW DO I SET IT UP? Take the lid off, and connect the input wires to the screw terminals. Put a voltmeter or one of my meters across the output and turn on the power adjust the CV pot next to the output terminals to set the output voltage to the voltage you require. When happy, power off, connect the load to the output terminals, refit the lid and power on TECHNICAL SPECIFICATIONS Input Voltage Range 6V – 36V  DC (7Vin min if Vout > 12V) Output Voltage range 1V – 35V DC Input Current 7A max Output Current 5A max 71mm x 40mm x 31mm Weighs 77g OBSERVATIONS 12Vin 4.57A gives 24Vout 2A   (87%), after 10 mins temp is TBC (hot) 24Vin 0.61A gives 12Vout 1A  (82%) If you’d like some additional information, please ask and I’ll put the device on the bench I sell a higher power buck (step down) version of this module here. DELIVERY Dispatched Same weekday if ordered before 3pm.  I hold all my stock in Surrey.  Free 2nd Class Royal Mail.  You can level up to 1st Class. SUPPORT My support is second to none.  Check my feedback.  I will gladly help you before or after purchase.  I love power supplies!  I’ll gladly refund you if it’s faulty or you can return it working if it doesn’t perform as you expect.  Be careful with clone UK suppliers – they’re quite often drop-shippers who have no idea what they’re selling – just check their feedback.
